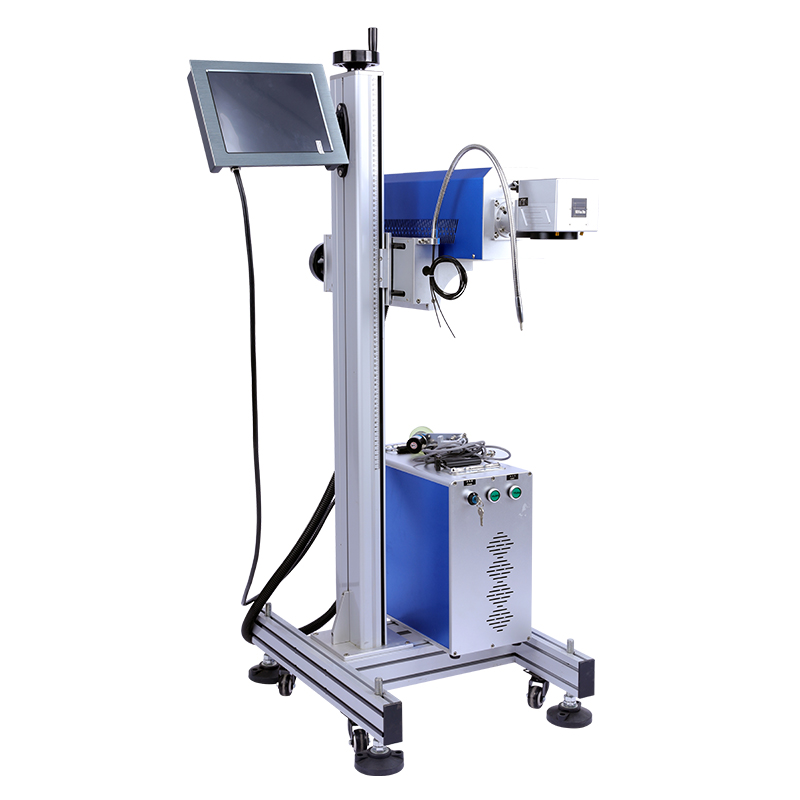

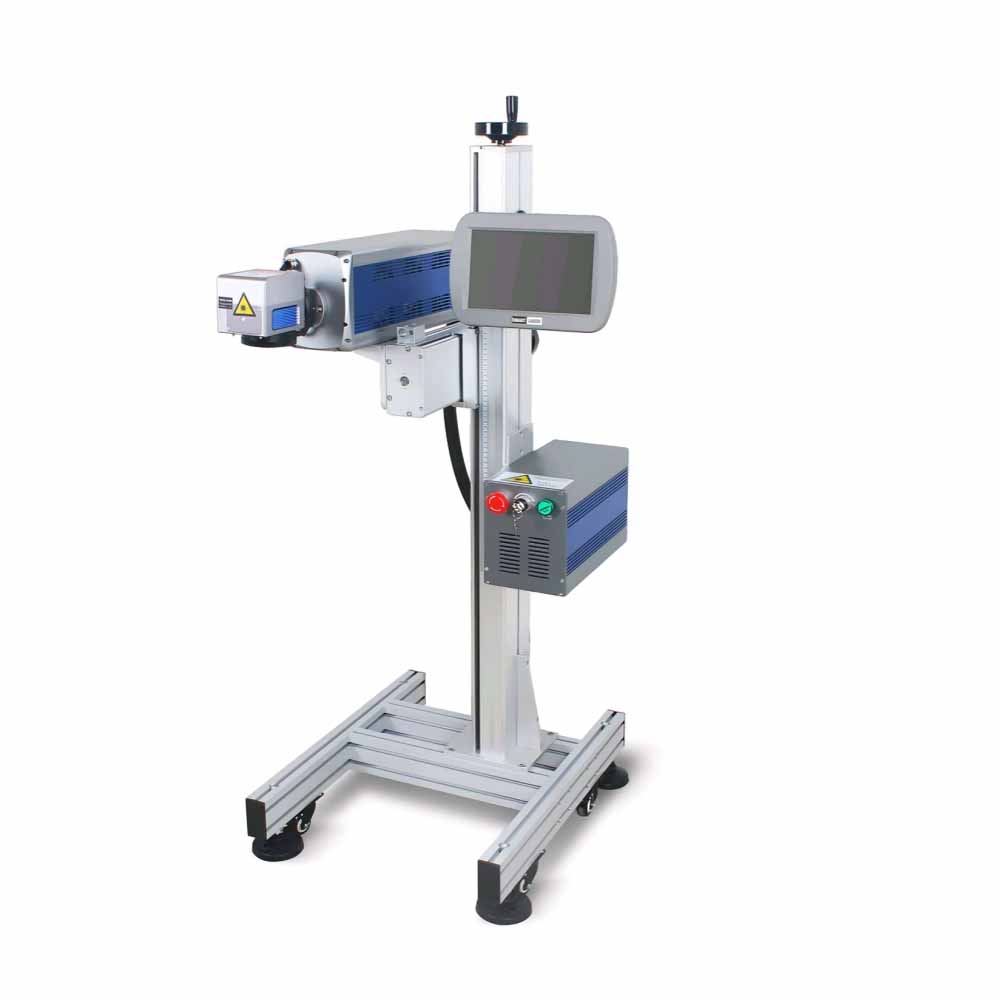

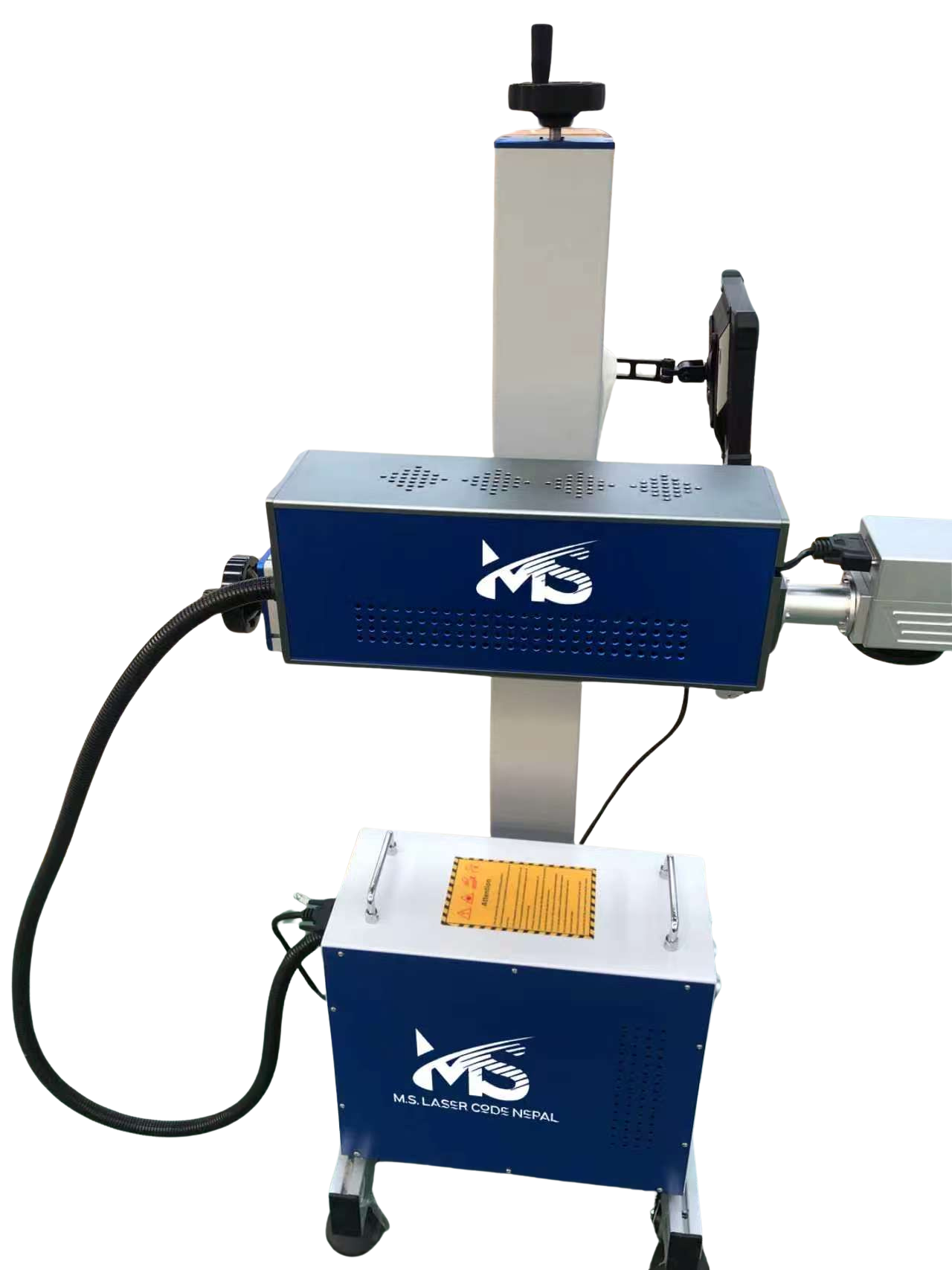

CO2 Flying Laser Marking Machine

Name: CO2 Flying Laser Marking Machine
SKU: 34
Availability: InStock

Printers

Original price was: ₨ 750,000.00.Current price is: ₨ 700,000.00.

The CO₂ Flying Laser Marking Machine is a high-speed industrial marking system designed for efficient production lines. It uses a reliable RF CO₂ laser tube to deliver fast, stable performance with marking speeds up to 200 m/min.

It supports automatic coding features such as dates, batch numbers, serial numbers, barcodes, and QR codes, making it ideal for high-volume industries like food, beverage, packaging, and pharmaceuticals.

This machine is suitable for marking on non-metal materials such as paper, plastic, wood, leather, and coated surfaces, providing clear and precise printing for product identification and branding.

Category: Printers

CO2 Flying Laser Marking Machine – High-Speed Industrial Coding Solution

Boost your production efficiency with the CO2 Flying Laser Marking Machine, a high-performance solution designed for continuous, high-speed industrial marking. Built with a premium industrial-grade RF CO2 laser tube, this machine ensures precise, reliable, and long-lasting marking across a wide range of materials.

Key Features

High-Speed Marking: Up to 200 m/min, ideal for fast production lines
Multiple Power Options: 25W, 35W, 40W, 60W, 80W, and 100W
Zero Consumables: Maintenance-free operation for reduced long-term cost
Precision Coding: Supports text, serial numbers, batch numbers, barcodes, and QR codes
Automatic Functions: Date coding, number skipping, and variable data marking

Advanced Industrial Performance

The G Series CO2 flying laser marking system is engineered for continuous online marking, making it perfect for industries that demand speed, accuracy, and efficiency. With excellent optical performance and fast processing capability, it delivers clear and permanent markings even at high production speeds.

Wide Material Compatibility

This laser marking machine is suitable for marking on various non-metallic materials, including:

Paper and film packaging
PVC and plastic products
Plexiglass and coated materials
Wood, bamboo, and leather

Applications

Widely used across multiple industries, including:

Food & beverage packaging
Pharmaceuticals and medical products
Cosmetics and personal care
Electronics and components
Tobacco and chemical products

Easily mark production dates, expiry dates, batch numbers, logos, and barcodes with precision and consistency.

Why Choose This Machine?

Increases production efficiency
Reduces operational costs
Ensures high-quality, permanent marking
Ideal for automated production lines

Technical Specifications – CO2 Flying Laser Marking Machine

Laser Parameters

Laser Source: DAVI RF CO2 Laser
Output Power Options:

25W / >35W / >40W / 60W / 80W / 100W
Beam Quality (M²): ≤ 1.2 (≤ 1.3 for higher power models)
Laser Wavelength:
10.55 – 10.6 µm (standard models)
9.3 / 10.2 µm (optional)
Pulse Frequency: 0 – 25 kHz
Exit Beam Diameter: 1.8 ± 0.2 mm
Power Stability: ± 5%
Working Life: Approx. 20,000 hours

Optical Performance

Marking Range: 100 – 300 mm (optional)
Engraving Depth: ≤ 1 mm (depends on material & power)
Engraving Speed: ≤ 10,000 mm/s
Repeat Accuracy: ± 0.002 mm
Minimum Line Width: 0.1 mm
Minimum Character Height: 0.15 mm

Environmental & Power Requirements

Cooling System: Built-in air cooling (water cooling optional)
Power Supply: 500W / 220V / 50Hz (110V optional)
Operating Temperature: 0°C – 40°C
Humidity: 30% – 85% RH
Note: Air conditioning recommended outside this range
Oil Mist / Condensation: Not allowed

System & Software

Operating System: Flying Laser Marking System
Supported Formats:
Text, QR Code, Barcode, Serial Number, Graphics

Key Highlights

High stability RF laser source
Long service life with low maintenance
Suitable for continuous industrial production lines
Supports variable data and automated coding

High-Speed Marking: Up to 200 m/min, ideal for fast production lines
Multiple Power Options: 25W, 35W, 40W, 60W, 80W, and 100W
Zero Consumables: Maintenance-free operation for reduced long-term cost
Precision Coding: Supports text, serial numbers, batch numbers, barcodes, and QR codes
Automatic Functions: Date coding, number skipping, and variable data marking

Widely used across multiple industries, including:

Food & beverage packaging
Pharmaceuticals and medical products
Cosmetics and personal care
Electronics and components
Tobacco and chemical products

Easily mark production dates, expiry dates, batch numbers, logos, and barcodes with precision and consistency.
