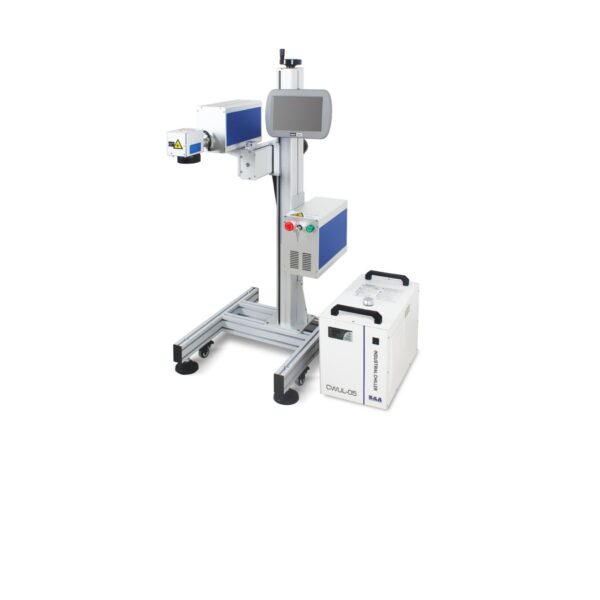

UV Flying Laser Marking Machine

UV Flying Laser Marking Machine

, ,

Original price was: ₨ 750,000.00.Current price is: ₨ 650,000.00.

The UV sub-series adopts pulsed ultraviolet laser source, which JPT Laser’s has excellent beam quality and perfect spot characteristics. The whole machine adopts an integrated structure design and the optical path and external drive circuit are integrated, making this product series have a strong anti-interference ability. Optimize and upgrade the fully sealed structure to effectively prevent external dust from entering.

Categories: , , Tag:

The UV  Laser Marking Machine is a high-performance industrial solution designed for precision marking and stable operation in demanding production environments. Equipped with a pulsed ultraviolet laser source from JPT Laser, the system delivers exceptional beam quality and ultra-fine spot characteristics, enabling high-precision marking on a wide range of materials.

Built with an advanced integrated structure, the machine combines the optical path and external drive circuit into a single compact design. This integration significantly enhances system stability and ensures strong resistance against external interference, making it highly reliable for continuous industrial use.

To further improve durability and performance, the UV sub-series features a fully sealed structure that has been carefully optimized and upgraded. This design effectively prevents dust and external contaminants from entering the system, ensuring consistent marking quality while reducing maintenance requirements and extending the machine’s operational lifespan.

With its combination of precision, reliability, and robust construction, the UV Sub-Series Laser Marking Machine is an ideal choice for industries that require clean, accurate, and permanent marking results.

Model Series

UV Series (JPT Laser Source)

Models

  • UV3F-LARK-355-3A
  • UV3F-LARK-355-5A
  • UV3 SE-A1-355-3SE
  • UV5 SE-A1-355-5E
  • UV3 SE-A1-355-3SC
  • UV5 SE-A1-355-5C
  • UV10 SE-A1-355-10S

Laser Parameters

  • Laser Source Model: JPT UV Laser
  • Output Power: 3W / 5W / 10W
  • Beam Quality (M²): ≤ 1.2
  • Laser Wavelength: 355 nm
  • Pulse Frequency: 20–40 kHz (some models up to 40–70 kHz)
  • Output Beam Diameter: ~0.7 ± 0.1 mm
  • Output Power Stability: ≤ 3%
  • Working Life: Approx. 20,000 hours

Optical Properties

  • Marking Range: 100–300 mm (optional)
  • Engraving Depth: ≤ 1 mm (depending on power and time)
  • Engraving Speed: ≤ 10,000 mm/s
  • Repeat Accuracy: ± 0.002 mm
  • Minimum Marking Line Width: 0.1 mm
  • Minimum Character Height: 0.15 mm

Use Environment

  • Cooling Method: Built-in air cooling / External water cooling
  • Power Supply: 500W / 220V / 50Hz (110V optional)
  • Temperature & Humidity:
    0–40°C, ≤ 85% RH (Air conditioner recommended outside this range)
  • Oil Mist / Condensation: Not allowed

Other Parameters

  • Operating System: Flying marking system
  • Supported File Format:
    Supports text, QR code, barcode, serial number, graphics, and other marking content

Model Introduction

The UV sub-series adopts JPT Laser’s pulsed ultraviolet laser source, offering excellent beam quality and precise spot characteristics. It features an integrated structure combining the optical path and external drive circuit, providing strong anti-interference capability. The fully sealed design is optimized to prevent dust entry and ensure stable long-term operation.

UV series UV flying laser marking machine
